AT-X LE
SHORT ACTION .308 WIN
LAW ENFORCEMENT
The next generation Accuracy International high performance, low profile AT-X LE rifle features cross-platform enhancements to match rigorous demands of the law enforcement professional.
AT-X LE CONFIGURATIONS
| CALIBER | BBL LENGTH | MUZZLE THREAD & PROTECTOR | MOUNTING SYSTEM |
|---|---|---|---|
| .308 WIN | 16.5"/20" 1:10 twist | 5/8"x 24 | KeySlot™ |
AT-X LE FEATURES
List of Services
-
BUTT PADSHOW ME List Item 1
Toolless, quick adjust butt pad with spacers. LOP adjustment 55 mm (excluding spacers)
-
CHEEKPIECESHOW ME List Item 2
Height adjustable to allow for night vision equipment or telescopic sights with large objective lenses. A hex key for barrel change etc. is convenientLy stored underneath.
-
BAG RIDERItem Link List Item 3
Rail mounted adjustable bag rider.
-
FOLDING STOCKSHOW ME List Item 4
The rigid and stable right folding chassis locks securely over the bolt. Reduces overall length by 8.86" (225 mm)
-
SLING POINTSItem Link
Five flush cup style points, two on rear end, one on side, and two repositional on the forend tube
-
PISTOL GRIPItem Link
Rubber AR style replaceable pistol grip
-
SAFETYSHOW ME
Three position safety catch on the bolt shroud:
Locked (bolt cannot be lifted)
Safe (bolt can be lifted)
Fire (firing pin engaged)
-
TRIGGERItem Link
Standard two stage AI trigger set at 4 lbs. Easily removed for cleaning
-
BOLTItem Link
Enhanced design, steel bolt body with maraging steel bolt head and lock ring,6 lug, 60° bolt and AI combat proven leaf spring extractor. Bolted to the aluminium chassis.
List of Services
-
MAGAZINESHOW ME List Item 1
Detachable 10 round double stack magazine. Slim profile mag catch for ambidextrous removal. Cut out magazine port on the left side for ease of insertion
-
ACTIONItem Link List Item 2
Next generation Proofed EN24T steel action. 20 MOA Mil Std 1913 action rail and forend rail. Overpressure ports.
-
QUICKLOCItem Link List Item 3
AI’s patented system for barrel removal and refit including calibre/length change in minutes using the 4mm hex key stored under the cheekpiece
-
TRIPOD INTERFACEItem Link List Item 4
The flat bottomed forend features an integral RRS (Arca-Swiss style) interface.
-
BARRIER SUPPORTItem Link
The lower chassis front face is machined to provide a rugged barricade support
-
FORENDItem Link
Shorter, Free floating, single plane forend and bridge with 20 MOA MIL Std 1913 Picatinny rail co-planar with action rail for for in-line NV and thermal scopes. KeySlot™ mounting system for accessory rails
-
BARRELSItem Link
Stainless Steel match grade cut-rifled barrels with M27 barrel tenon and 5/8x24 muzzle thread. Manufactured in the USA
-
MUZZLE PROTECTORItem Link
Securely protects the muzzle thread when barrel not connected to a suppressor or muzzle brake
-
CHASSISItem Link
7075 aluminium chassis with AI KeySlot™ forend mounting system,with right side folding stock over bolt.
AT-X LE ACCESSORIES
AT-X LE COLORS
SNIPER GREY
SAGE GREEN
DARK EARTH
AT-X LE SPECIFICATION
CALIBERs
.308 WIN (short action)
20” or 16.5” threaded barrel 5/8” x 24 muzzle
thread and thread protector, 1 in 10” twist
WEIGHT
.308 WIN with hinge, bridge with full length rail, bag rider, empty magazine, no scope, 20” barrel, no muzzle brake, no bipod: 13.8 lb
DIMENSIONS
20” barrel:
Full length 39.5”
Stock folded 30.5"
16.5" barrel:
Full length 36”
Stock folded 27”
BARREL OPTIONS
.308 WIN
1:10 twist
16.5" / 20"
Muzzle thread options (all barrels)
5/8"x 24 no muzzle brake
GENERAL SPECIFICATION
• Next generation Proofed EN24T steel action and bolt body with maraging steel bolt head and lock ring bolted to the aluminum chassis
• 20 MOA Mil Std 1913 action rail and forend rail for use with in-line night vision or thermal scopes
• 6 lug with improved geometry, 60° bolt throw with AI leaf spring extractor
• 3 position safety
• AI Standard Two-stage trigger set at 4 lbs
• Quickloc barrel change system: remove/refit barrels in minutes using 4mm hex key
• Overpressure ports
• Stainless steel match grade barrels with M27 barrel tenon and 5/8 x 24 muzzle thread
• Shorter chassis forend with RRS spec /
Arca-Swiss style interface and barricade support. Left side port cut out for ease of magazine insertion
• KeySlot™ forend mounting system
• Right side folding stock over bolt
• Toolless quick adjust cheekpiece, buttpad
and LOP
• Detachable 10 round double stack magazine
• Designed to accept most AR style grips
• Adjustable bag rider
• Flush cup sling attachment points
• User manual

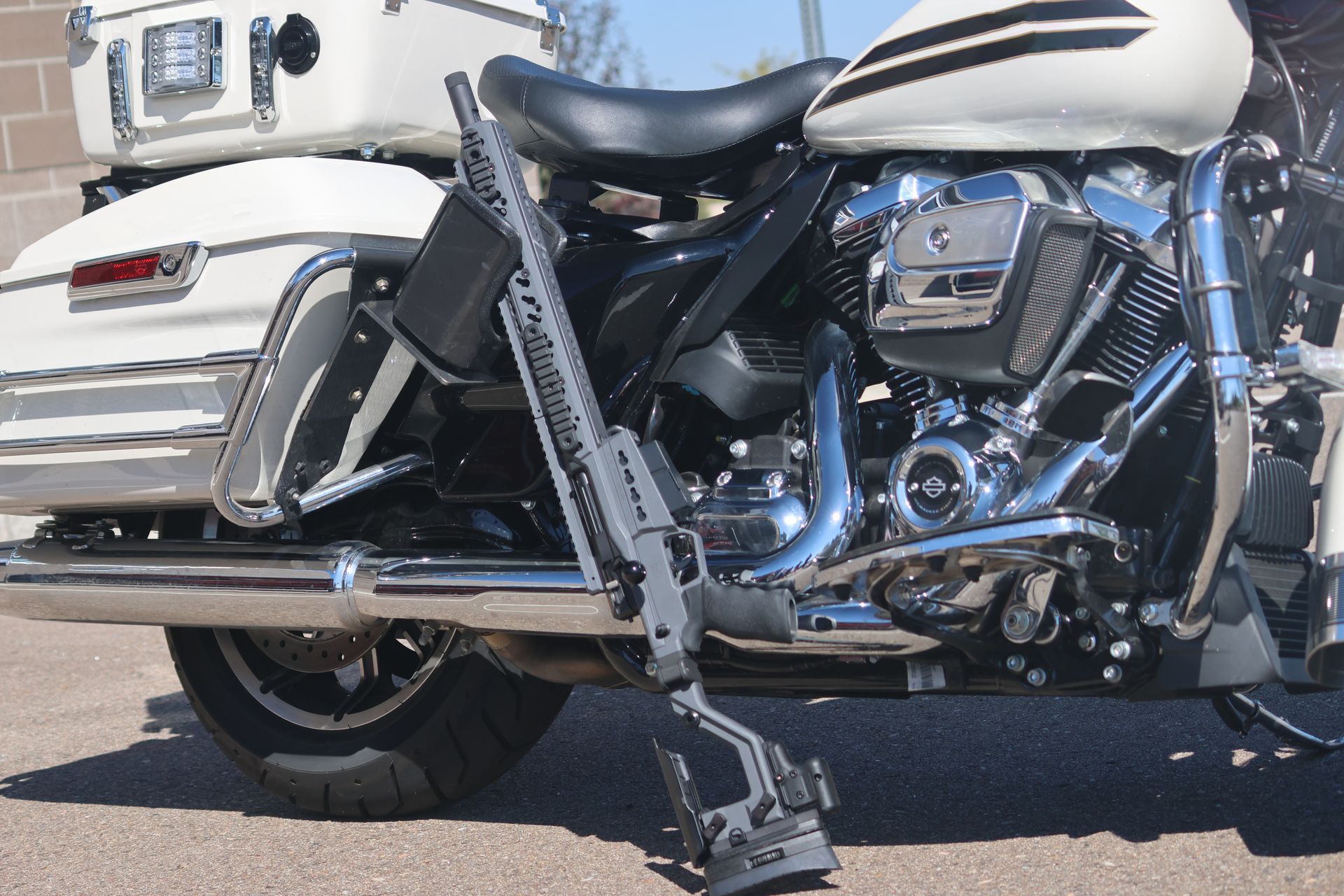

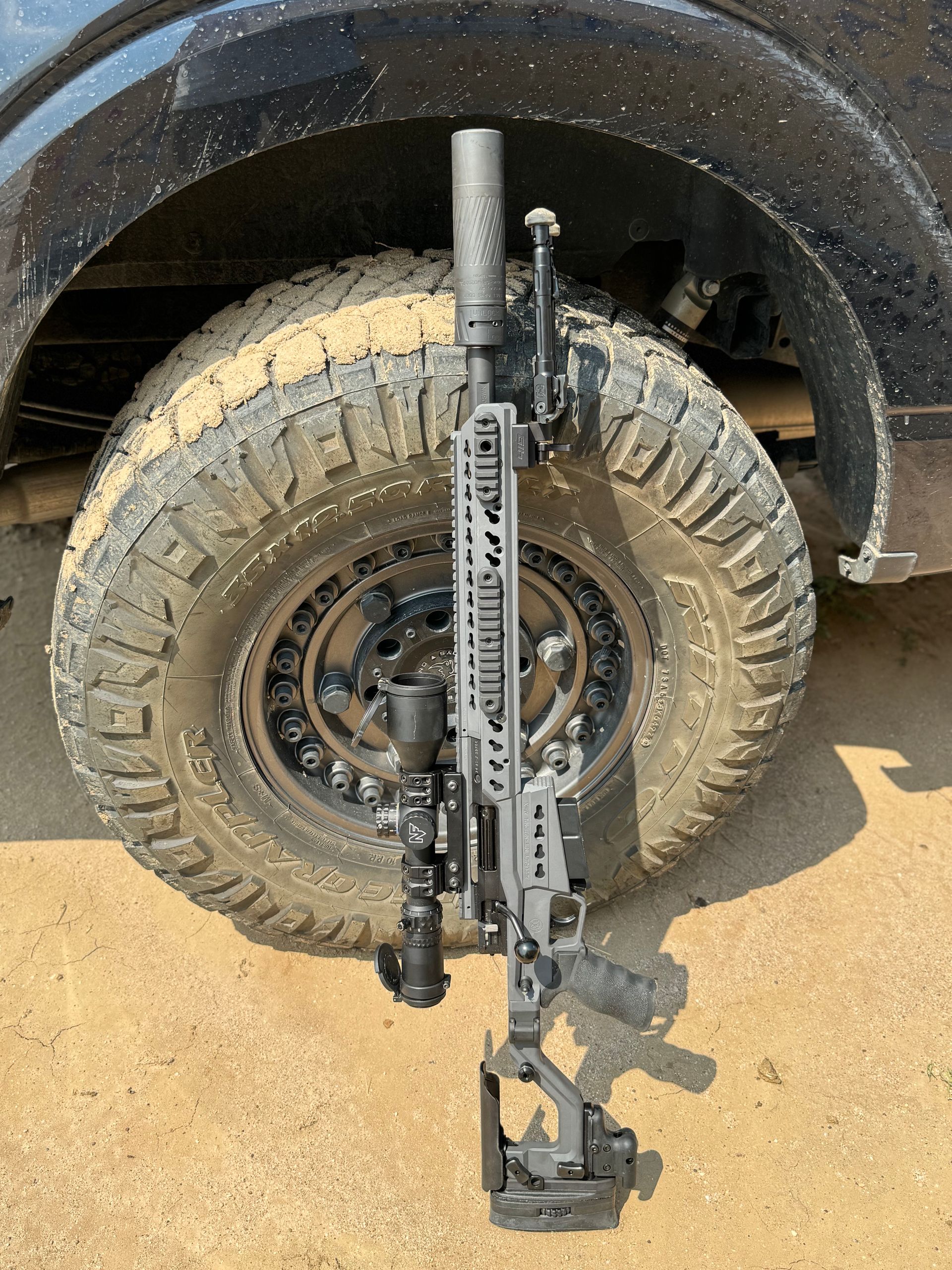

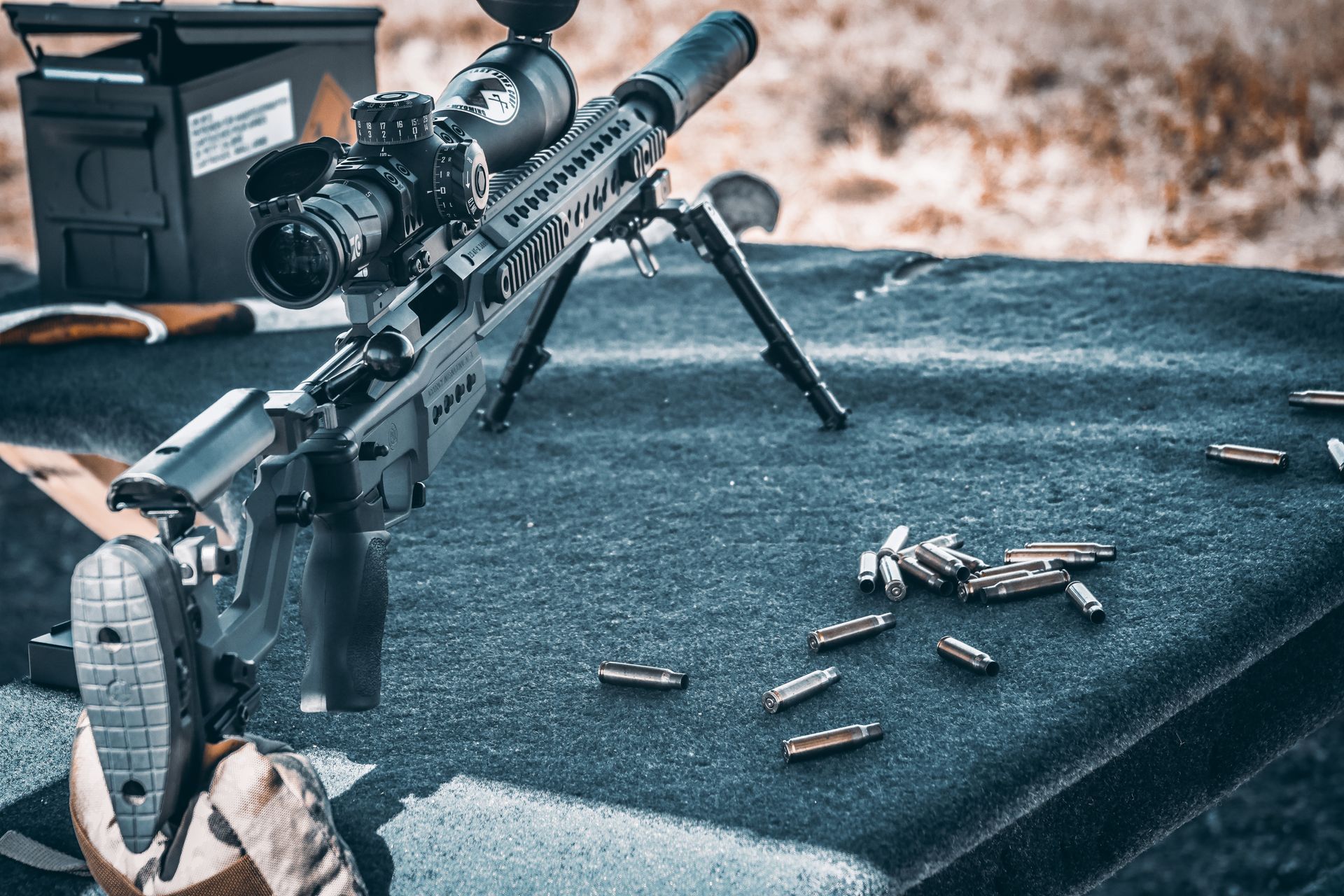

AT-X LE SNAPSHOTS
