AXSR
LONG ACTION MULTI CAL RIFLE
The next generation Accuracy International high performance, long action AXSR multi caliber rifle system features cross-platform enhancements to match the demands of sporting communities worldwide. Available preconfigured in one of five calibers and easily converted to others in minutes, the AXSR has successfully completed relevant NATO/ military weapon tests for assurance of continued performance.
AXSR CONFIGURATIONS
| CALIBER | BBL LENGTH | MUZZLE THREAD | MUZZLE BRAKE |
|---|---|---|---|
| .338 LM | 27" 1:9.35 twist | 3/4 x 24 | APA FB |
| .338 NM | 27" 1:9.35 twist | 3/4 x 24 | APA FB |
| .300 NM | 27" 1:8 twist | 3/4 x 24 | APA FB |
| .300 PRC | 27" 1:8 twist | 3/4 x 24 | APA FB |
| .300 WM | 26" 1:10 twist | 3/4 x 24 | APA FB |
Also available > .308 WIN & 6.5CM non standard build (spares only)
> other barrel lengths / thread pitches > M-Lok forends
AXSR FEATURES
List of Services
-
BUTT PADSHOW ME List Item 1
Toolless quick adjust buttpad. Min 321mm (12.6") with a total range of 55mm (2.15") in 3.2mm (0.12") increments
-
CHEEKPIECESHOW ME List Item 2
Height adjustable range: 22mm (0.86") in 3.22mm (0.12") increments.
A 5/32 hex key for barrel change. is convenientLy stored beneath
-
BAG RIDERItem Link List Item 3
Rail mounted adjustable bag rider.
-
FOLDING STOCKSHOW ME List Item 4
The rigid and stable right folding stock locks securely over the bolt. Reduces overall length by 8.46" (215 mm) for transportation
-
SLING POINTSItem Link
Six flush cup style points, three on rear end, one on chassis and two repositional on each side of KeySlot™ forend tube
-
PISTOL GRIPItem Link
Rubber ERGO replaceable pistol grip
-
SAFETYSHOW ME
Ambidextrouse two position safety catch:
S = Safe | F = Fire
-
TRIGGERItem Link
AI XTSP competition trigger. Two stage, set at 2.5lbs. Easily removable (two socket head screws) for cleaning
-
BOLTItem Link
Steel bolt with maraging steel bolt head and lock ring, 6 lug, 60° bolt with AI combat proven leaf spring extractor.
List of Services
-
MAGAZINESHOW ME List Item 1
Detachable 10 round double stack magazine. Slim profile mag catch for ambidextrous removal. Cut out magazine port on the left side for ease of insertion
-
ACTIONItem Link List Item 2
Proofed EN24T steel action. Action rail and forend rail 20 MOA / STANAG 4694 / Mil Std. 1913 Action bolted to the aluminium chassis.
-
QUICKLOCItem Link List Item 3
AI’s patented system for barrel removal and refit including calibre/length change in minutes using the 5/32 hex key stored under the cheekpiece
-
TRIPOD INTERFACEItem Link List Item 4
The flat bottomed forend grip and forend tube feature integral RRS (Arca-Swiss style) interface.
-
BARRIER SUPPORTSItem Link
The stepped front face of the forend grip is machined to provide two rugged barricade supports
-
FORENDItem Link
The free floating 16" octagonal forend tube with full length 20 MOA STANAG 4694 / Mil Std 1913 rail features AI's patented KeySlot™ mounting system to take a wide range of accessories
-
BARRELSItem Link
Stainless steel cut-rifled competition match grade barrels with M30 barrel tenon and 3/4x24 muzzle thread. Manufactured in the USA
-
MUZZLE BRAKEItem Link
The APA FB muzzle brake reduces recoil, muzzle flash and dust eruption.
-
CALIBER CONVERSION COMPONENTSItem Link
Caliber conversions comprising barrel, bolt and magazine. A choice of barrel lengths for each caliber are also offered
AXSR COLORS
BLACK
SAGE GREEN
DARK EARTH
AXSR SPECIFICATION
CALIBERS
.338 LM | .338 NM | .300 NM
.300 PRC | .300 WM
WEIGHT
.338LM with 27” barrel and APA FB muzzle brake, empty magazine, standard accessory rails, no scope, no bipod: 16.2 lb
DIMENSIONS
With 27” barrel & muzzle brake
Full length: 49.5”
Stock folded: 41.5”
BARRELS
.338 LM: 27” bbl, 1 in 9.35 twist
.338 NM: 27” bbl, 1 in 9.35 twist
.300 NM: 27” bbl, 1 in 8 twist
.300 PRC: 27” bbl, 1 in 8 twist
.300 WM: 26” bbl, 1 in 10 twist
.308 Win: 24” bbl, 1 in 10 twist
6.5 CM: 24” bbl, 1 in 8 twist
GENERAL SPECIFICATION
• Proofed EN24T steel action and bolt body with maraging steel bolt head and lock ring bolted to the aluminum chassis
• 20 MOA Mil Std 1913 action rail and forend rail for use with in-line night vision or thermal scopes
• 6 lug, 60° bolt throw with AI leaf spring extractor
• Ambidextrous two position safety
• AI / XTSP Two-stage trigger set at 2.5 lbs
• Quickloc barrel change system: remove/refit barrels in minutes using 5/32 hex key
• Stainless steel match grade barrels with M30 barrel tenon and ¾ x 24 muzzle thread, fitted with APA FB muzzle brake
• Aluminum chassis with RRS spec / Arca-Swiss style interface and barricade support. Left side port cut out for ease of magazine insertion
• KeySlot™ forend mounting system complete with 1 x 5.5”, 1 x 3.15” plain and 2 x 3.15” flush cup accessory rails
• Right side folding stock over bolt
• Toolless quick adjust cheekpiece, buttpad and LOP
• Detachable 10 round double stack magazine
• Designed to accept most AR style grips
• Adjustable bag rider
• Flush cup sling attachment points
•
User manual

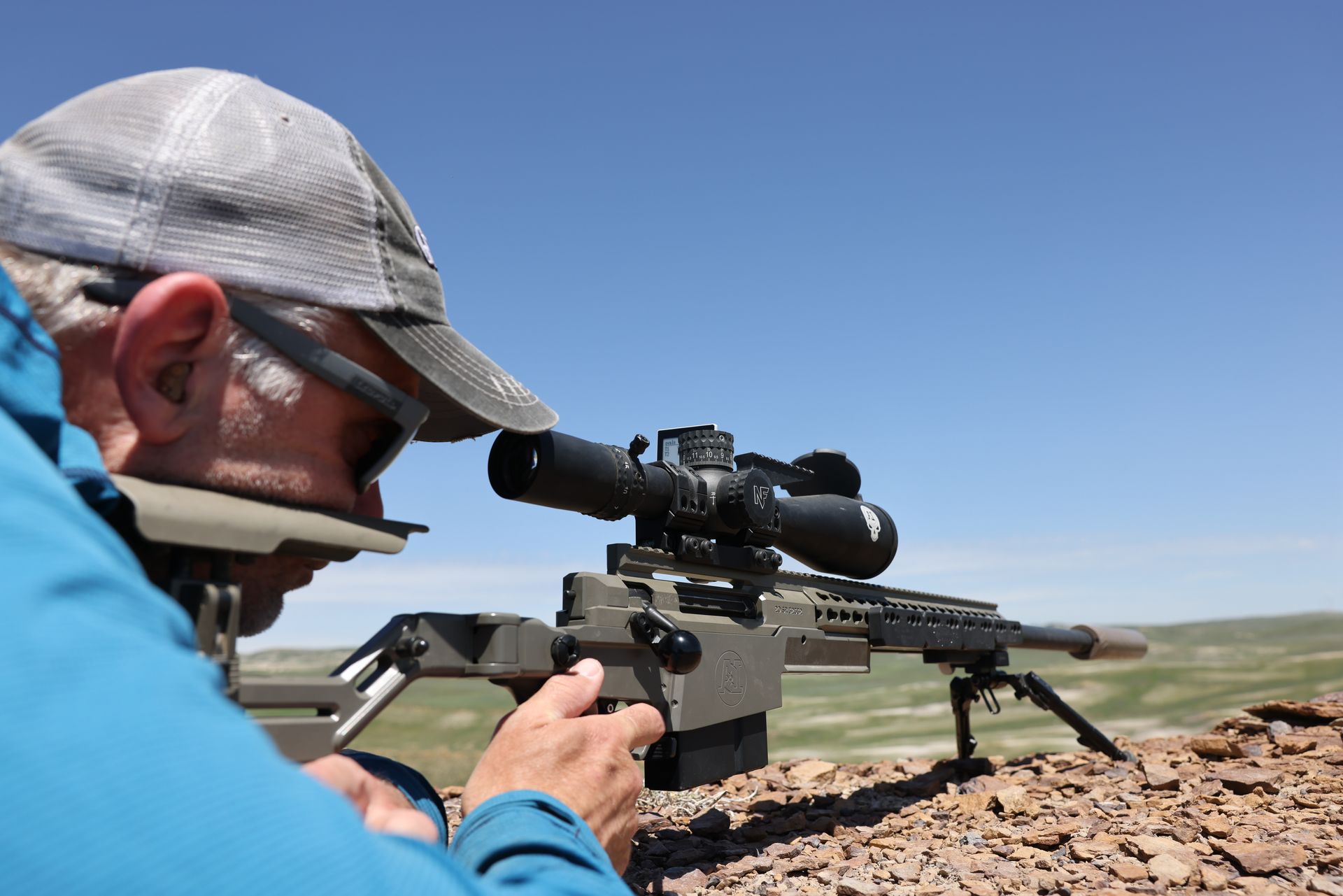

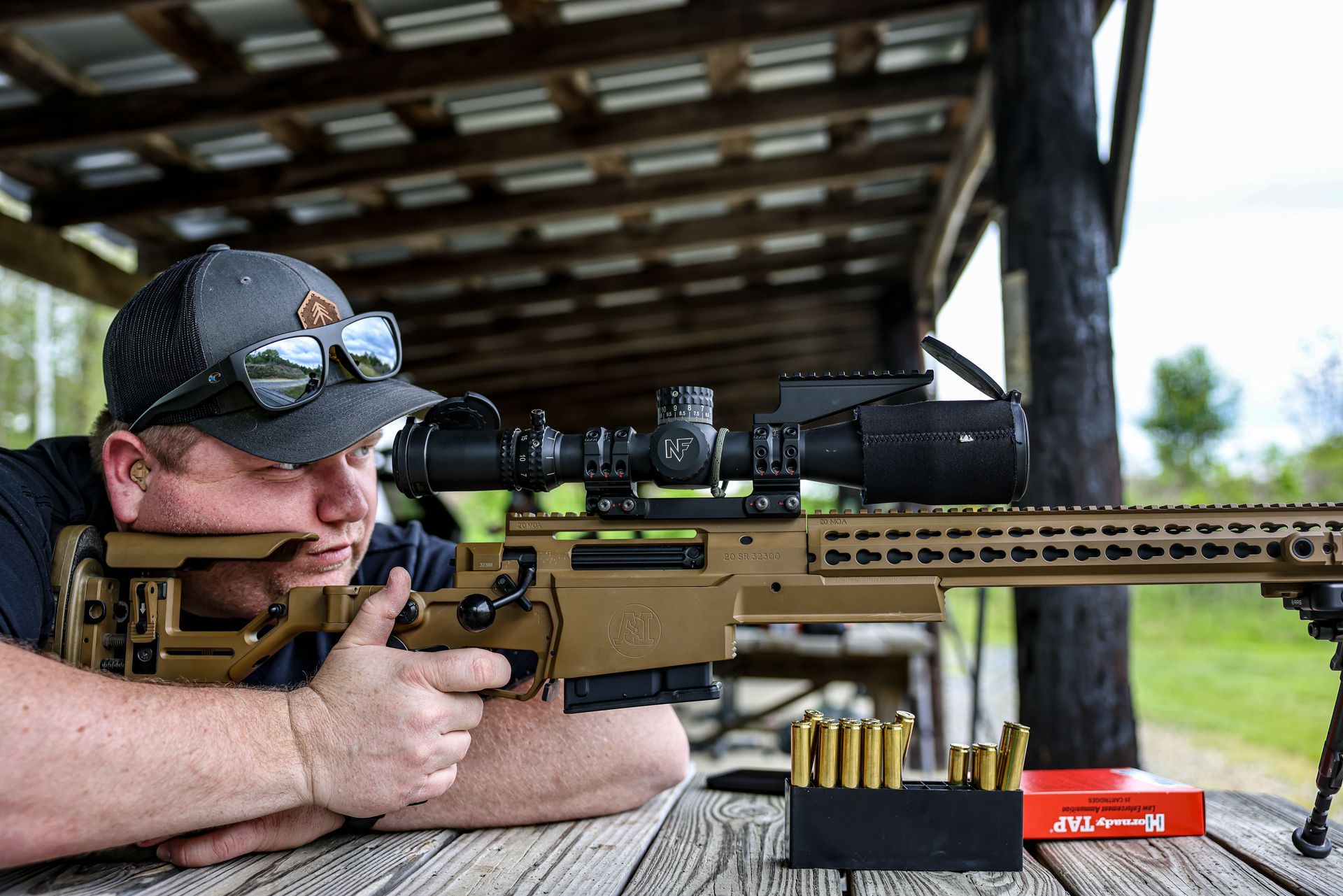

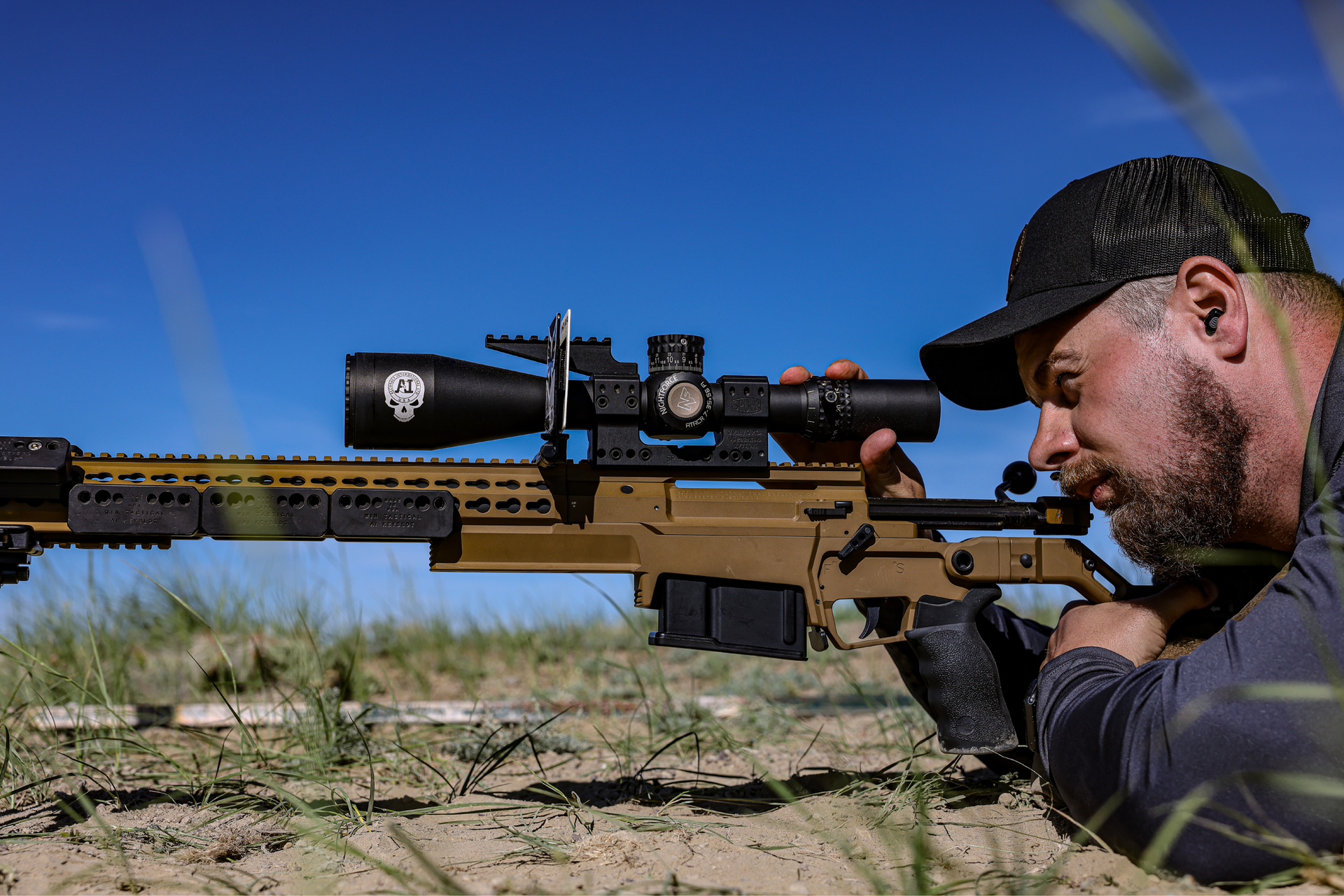

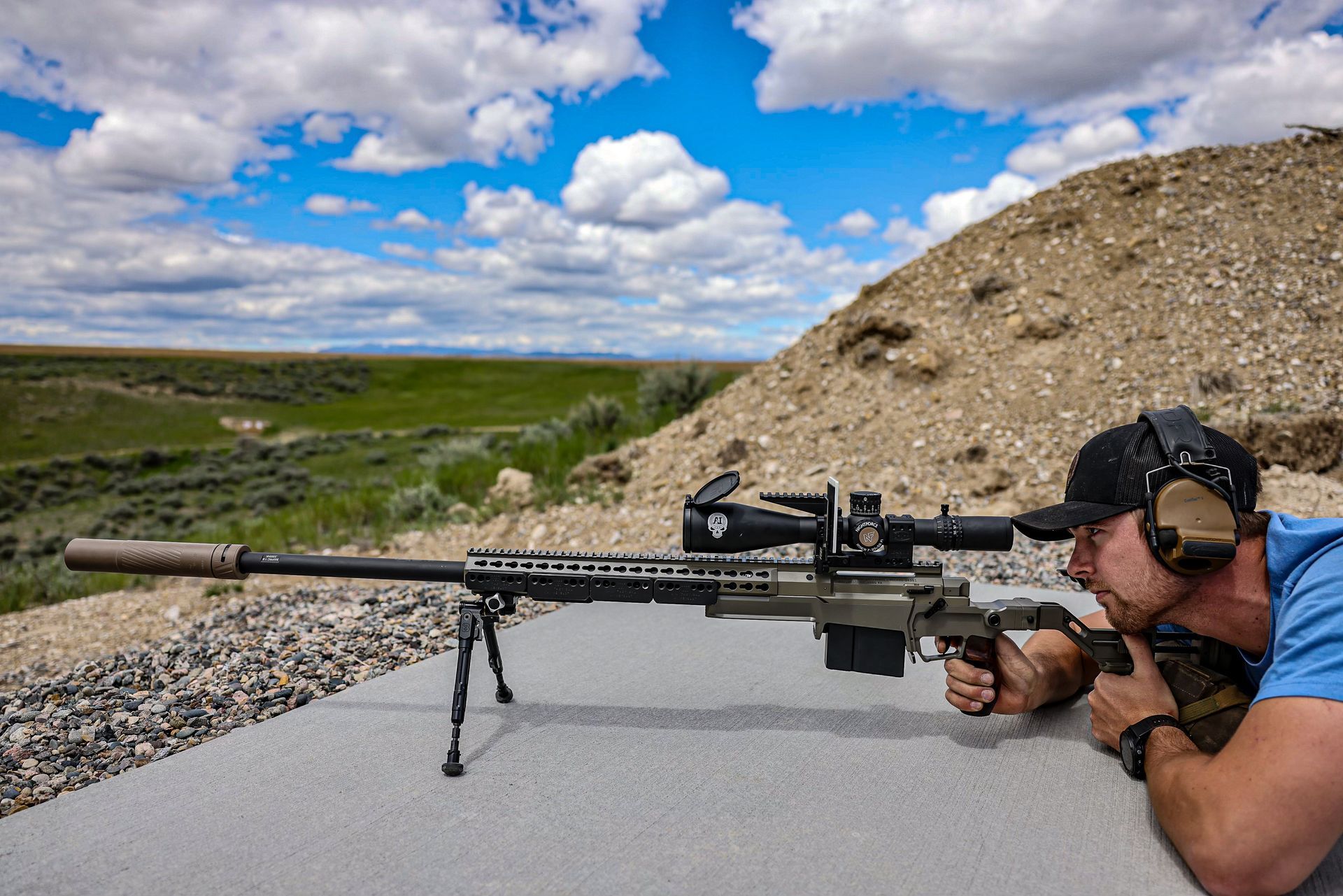

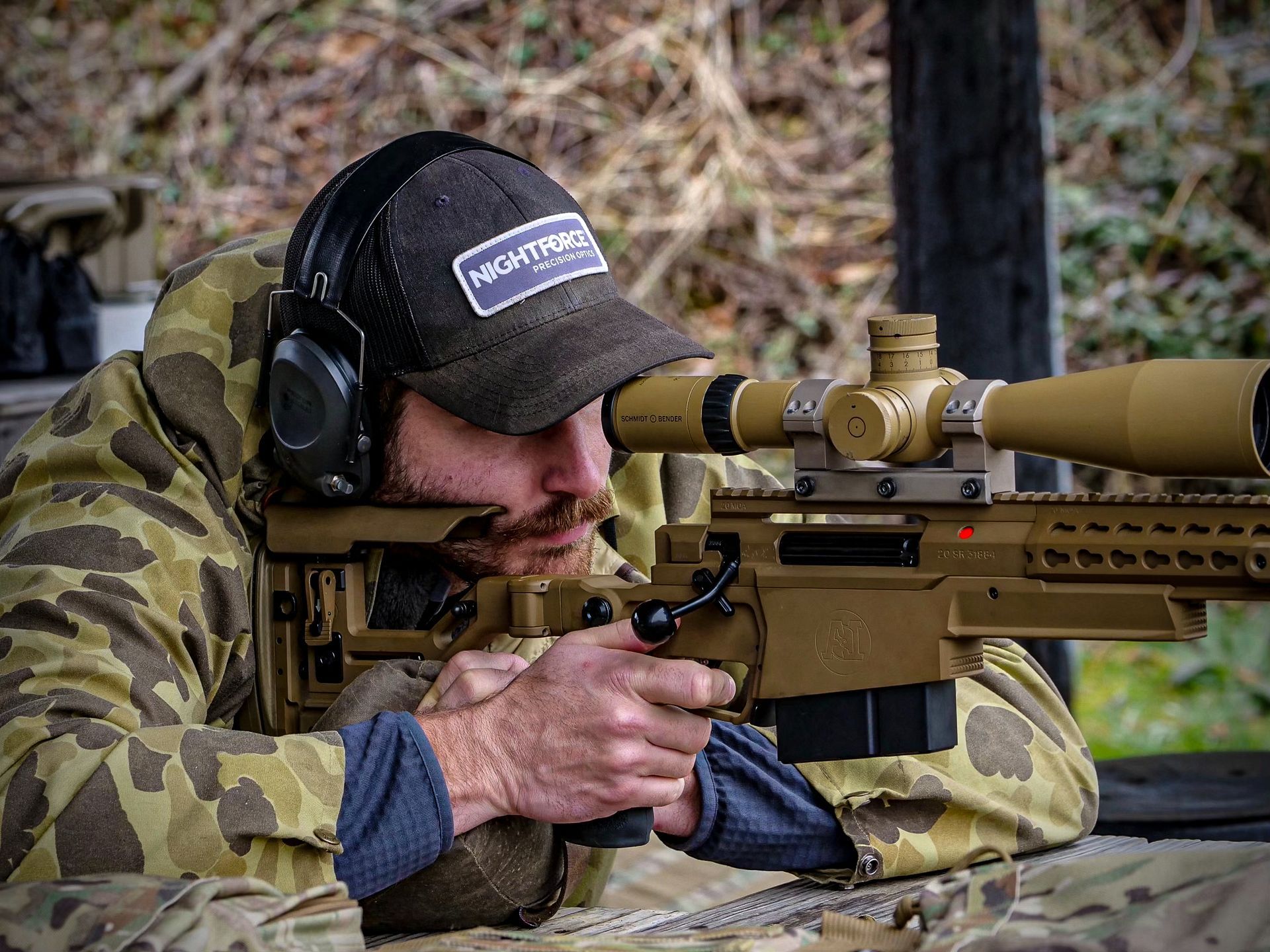

AXSR SNAPSHOTS
