AXSR
LONG ACTION MULTI CAL RIFLE
The latest in a long and distinguished line of combat proven rifles, the long action AXSR multi caliber rifle system has successfully completed relevant NATO/military weapon tests worldwide for assurance of continued performance.
Armed with an AI caliber conversion kit comprising barrel, bolt and magazine a user can reconfigure the rifle in minutes without compromising accuracy, simply by using the hex key handily stored under the cheekpiece.
AXSR CoNFIGURATIONS
| CALIBER | BBL LENGTHS | MUZZLE THREAD | MUZZLE BRAKE | MOUNTING SYSTEM |
|---|---|---|---|---|
| .338LM | 27" 1:9.35 twist | 3/4" x 24 | APA FB | KeySlot |
| .338NM | 27" 1:9.35 twist | 3/4" x 24 | APA FB | KeySlot |
| .300NM | 27" 1:8 twist | 3/4" x 24 | APA FB | KeySlot |
| .300PRC | 27" 1:8 twist | 3/4" x 24 | APA FB | KeySlot |
| .300WM | 26" 1:10 twist | 3/4" x 24 | APA FB | KeySlot |
Also available > .308 WIN & 6.5CM non standard build (spares only) > other barrel lengths / thread pitches > M-Lok forends
AXSR FEATURES
List of Services
-
BUTT PADSHOW ME List Item 1
Toolless, quick adjust butt pad and Length of Pull: Min 321mm (12.6") with a total range of 55mm (2.15") in 3.2mm (0.12") increments
-
CHEEKPIECESHOW ME List Item 2
Height adjustable range: 22mm (0.86") in 3.2mm (0.12") increments. A hex key for barrel change etc. is conveniently stored underneath.
-
BAG RIDERItem Link List Item 3
Rail mounted adjustable bag rider.
-
FOLDING HINGESHOW ME List Item 4
The rigid and stable right folding hinge locks securely over the bolt. Reduces overall length for shorter profile during transportation
-
SLING POINTSItem Link
Six flush cup style points, three on rear end, one on chassis and two repositional on each side of forend tube
-
PISTOL GRIPItem Link
Rubber AR style replaceable pistol grip
-
SAFETYSHOW ME
Two position ambidextrous safety catch:
S = Safe | F = Fire
-
TRIGGERItem Link
AI XTSP trigger. Two stage. Set at 2.5 lbs. Easily removable (two socket head screws) for cleaning.
-
BOLTItem Link
Steel Bolt body with maraging steel bolt head and lock ring. 6 lug, 60° bolt throw. AI combat proven leaf spring extractor
List of Services
-
MAGAZINESHOW ME List Item 1
Detachable 10 round double stack magazine. Slim profile mag catch for ambidextrous removal.
-
ACTIONItem Link List Item 2
Proofed EN24T steel action and bolt body bolted to the aluminium chassis. Action rail and forend rail 20 MOA Mil Std for use with in-line Night vision or thermal scopes. Overpressure ports.
-
QUICKLOCItem Link List Item 3
AI’s patented system for barrel removal and refit including caliber/length change in minutes using the 5/32 hex key stored under the cheekpiece.
-
TRIPOD INTERFACEItem Link List Item 4
The flat bottomed forend grip and forend tube feature RRS integral (Arca-Swiss style) interface.
-
BARRIER SUPPORTSItem Link
The stepped front face of the forend grip is machined to provide two rugged barricade supports
-
FORENDItem Link
The free floating forend tube with 20 MOA with a choice of either KeySlot™ or M-LOK mounting system
-
BARRELSItem Link
Stainless Steel match grade cut-rifled barrels manufactured in the USA. M30 barrel tenon.
-
MUZZLE BRAKEItem Link
ATA FB muzzle brake. 3/4 x 24 muzzle thread.
-
CALIBER KITSItem Link
Caliber kits comprising barrel, bolt and magazine for 6.5 Creedmoor and .308 Win, are available separately.
AXSR COLORS
BLACK
SAGE GREEN
DARK EARTH
AXSR SPECIFICATION
CALIBERs
.338 Lapua Mag / 27"
.338 Norma Mag / 27"
.300 Norma Mag / 27"
.300 PRC / 27"
.300 Win Mag / 26"
Also available > .308 WIN & 6.5CM non standard build (spares only) > other barrel lengths / thread pitches > M-Lok forends
WEIGHT
With ATA FB muzzle brake, empty magazine, standard accessory rails, rear grip
27" .338 Lap Mag barrel: 16.2 lb
DIMENSIONS
With 27” barrel and ATA FB muzzle brake
Full length: 49.5"
Stock folded: 41.5"
BARREL OPTIONS
.338 LM: 27” bbl, 1 in 9.35 twist
.338 NM: 27” bbl, 1 in 9.35 twist
.300 NM: 27” bbl, 1 in 8 twist
.300 PRC: 27” bbl, 1 in 8 twist
.300 WM: 26” bbl, 1 in 10 twist
.308 Win: 24” bbl, 1 in 10 twist
6.5 CM: 24” bbl, 1 in 8 twist
GENERAL SPECIFICATION
• Proofed EN24T steel action and bolt body with maraging steel bolt head and lock ring bolted to the aluminum chassis
• 20 MOA Mil Std 1913 action rail and forend rail for use with in-line night vision or thermal scopes
• 6 lug, 60° bolt throw with AI leaf spring extractor
• Ambidextrous two position safety
• AI / XTSP Two-stage trigger set at 2.5 lbs
• Quickloc barrel change system: remove/refit barrels in minutes using 5/32 hex key
• Stainless steel match grade barrels with M30 barrel tenon and ¾ x 24 muzzle thread, fitted with APA FB muzzle brake
• Aluminum chassis with RRS spec / Arca-Swiss style interface and barricade support. Left side port cut out for ease of magazine insertion
• KeySlot™ forend mounting system complete with 1 x 5.5”, 1 x 3.15” plain and 2 x 3.15” flush cup accessory rails
• Right side folding stock over bolt
• Toolless quick adjust cheekpiece, buttpad and LOP
• Detachable 10 round double stack magazine
• Designed to accept most AR style grips
• Adjustable bag rider
• Flush cup sling attachment points
• User manual

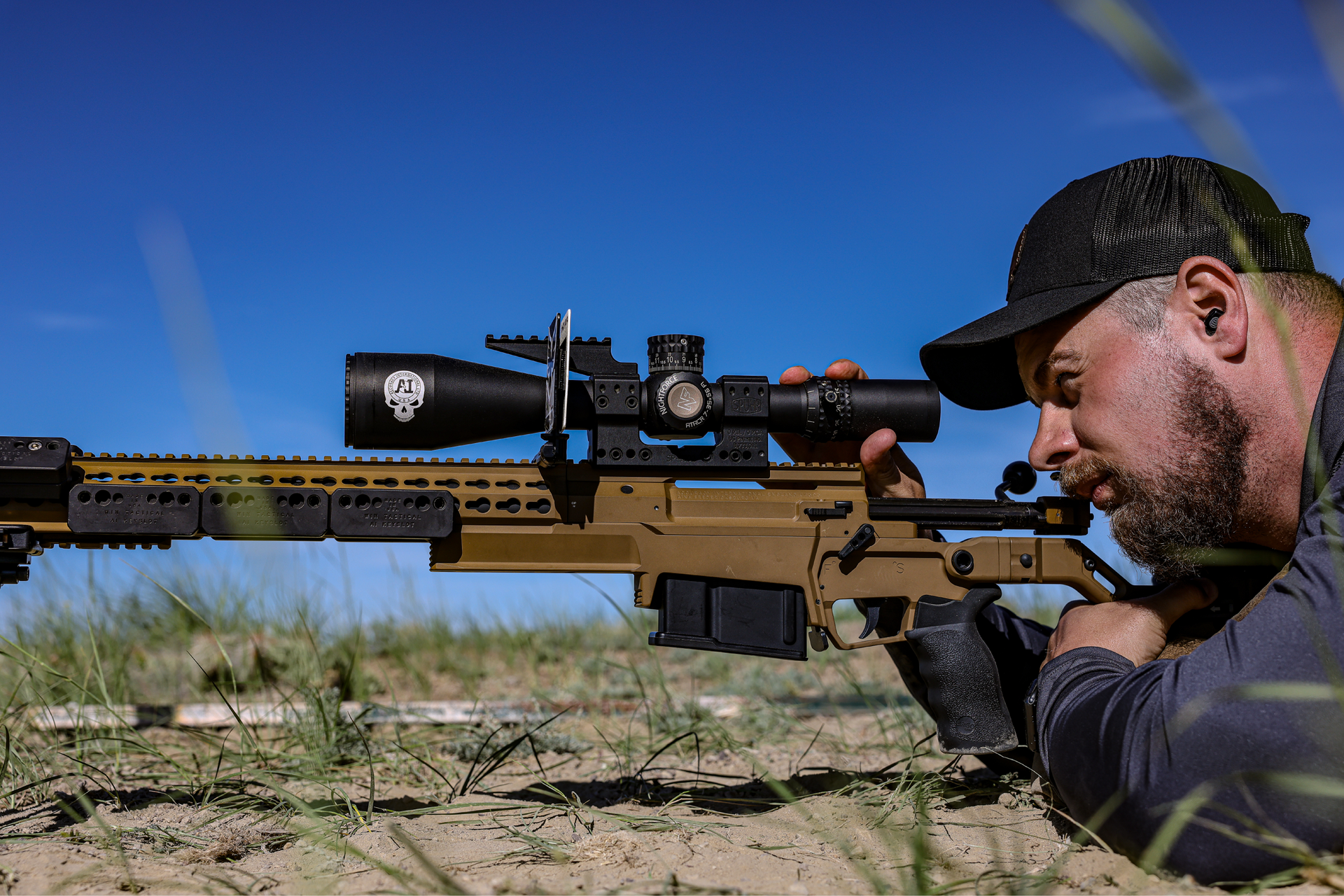

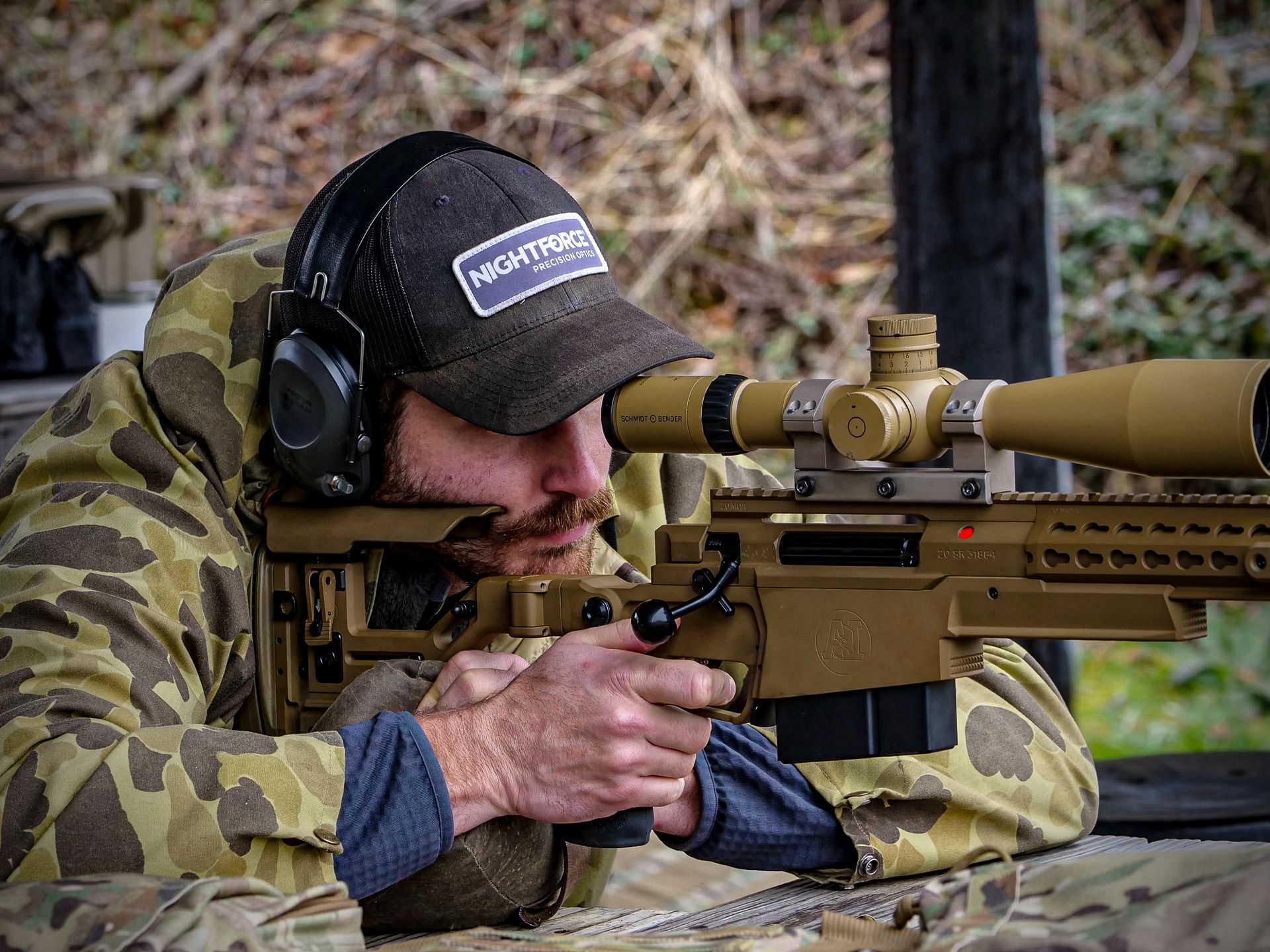

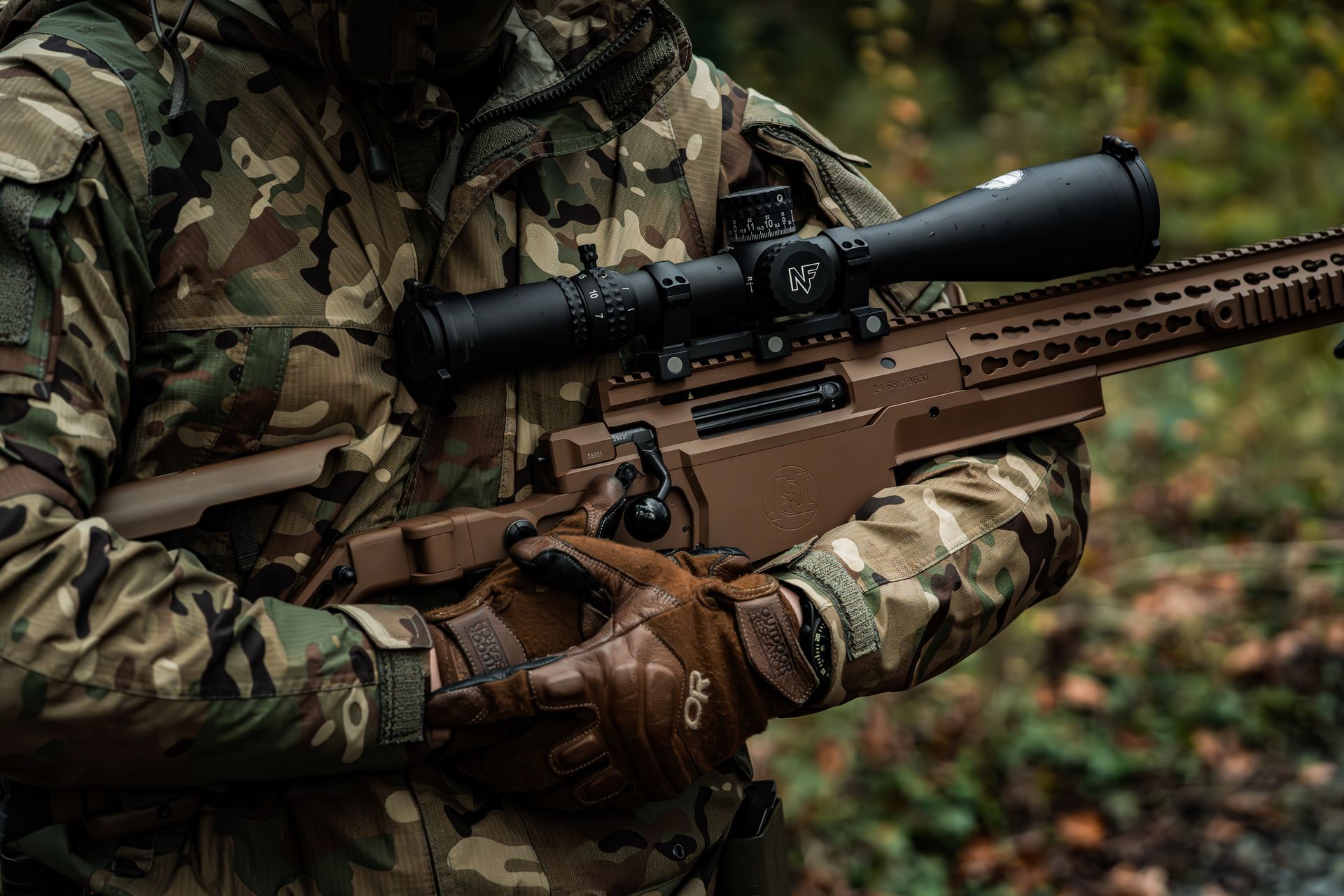

AXSR SNAPSHOTS
